| สถานที่กำเนิด | จีน |
| ชื่อแบรนด์ | GUANGLIJIN |
| ได้รับการรับรอง | CE Certificate |

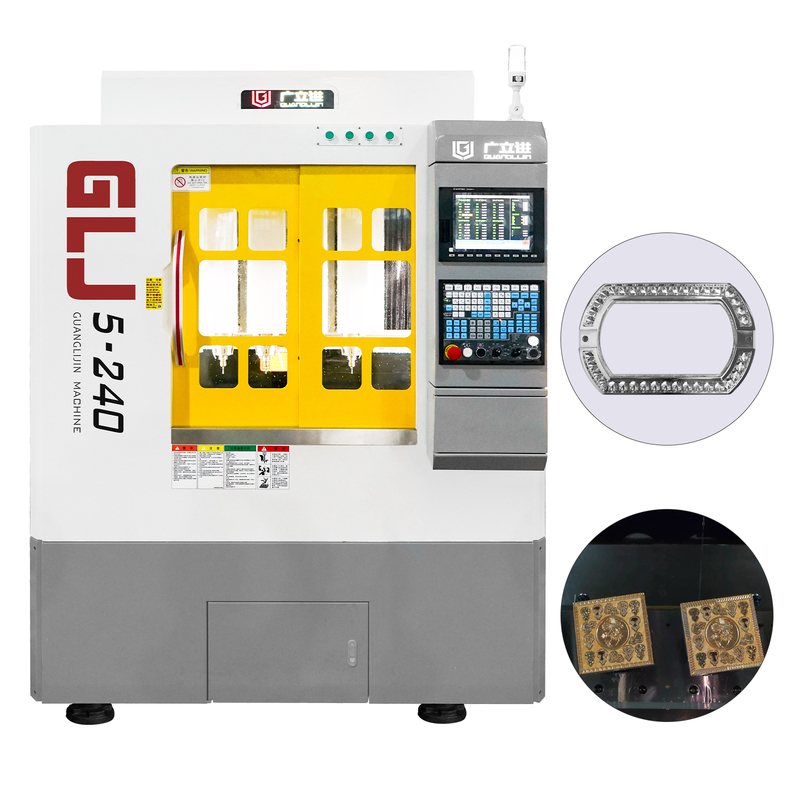

| หมายเลขรุ่น | G5-240 สี่แกนสี่แกน |
| No. | Item | Details | |
| 1 | B axis reducer | Alpha, Germany | Rated torque 88.9N.m, instaneous max. torque 312N.m, rated speed 43 rpm, max. speed 85 rpm |
| 2 | C axis reducer | Japan | Rated torque15.3N.m, instaneous max. torque 53.5N.m, rated speed 250 rpm, max. speed 500 rpm |
| 3 | Servo motor | electric | 400w/750w/1kw |
| 4 | Transmission components |
Rexroth, Germany | Repeatability: +/-0.005mm |
| 5 | Main spindle | servo-drive | 3.7kw, max. speed 40000 rpm water cooling with flow-alarm |
| 6 | Tool magazine | Up to 10 tools | |
| 7 | Tool holder | ISO 20 | |
| 8 | Collet chuck | ER-16 | |
| 9 | Lubrication | Timing automatic oiling | |
| 10 | Working flatness | +/-0.015mm | |
| 11 | X axis stroke | 240mm | |
| 12 | Y axis stroke | 210mm | |
| 13 | Z axis stroke | 230mm | |
| 14 | Body weight | 3.5 tons | |
| 15 | Front door | single swinging door | |
| 16 | Layout (mm) | Main body | 1800 width*1770 depth*2500 height |
| 17 | Power requirement | 380v/50hz | |
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Fumigation wooden case by sea or by air
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
